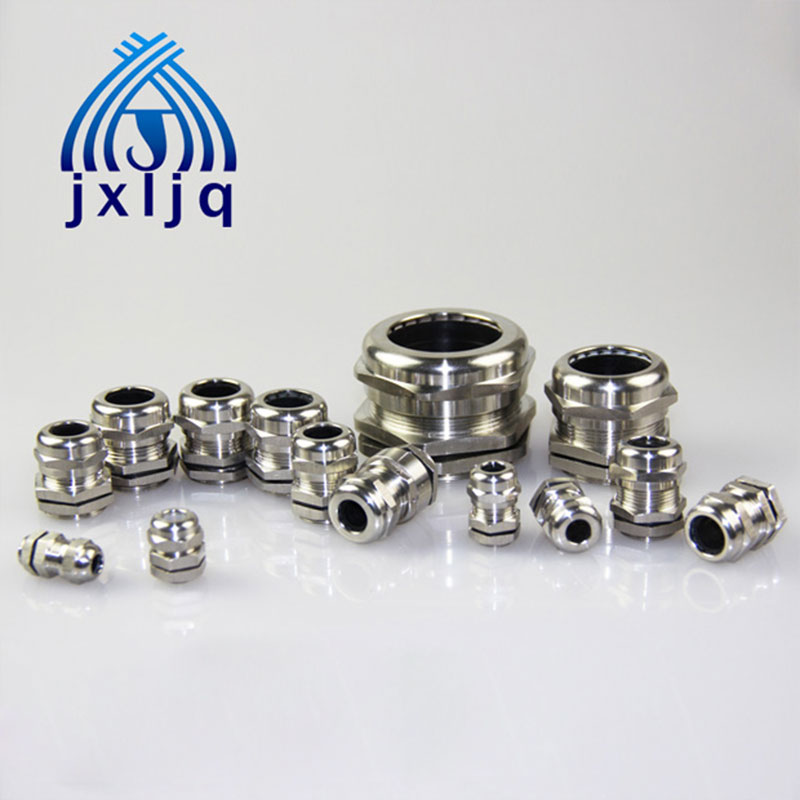

Stainless Steel Cable Gland PG Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Thread Size: PG Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
More options: Customization is acceptable.Welcome to inquire.
|
Stainless Steel Cable Gland - PG Thread |
|||||||
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D. (mm) |
Mounting Hole Dia (mm) |
Thread length GL(mm) |
Joint Length (mm) |
Spanner Size (mm) |
|
JX-PG7A-SS |
PG7 |
3-6.5 |
12.5 |
12.5-12.7 |
7 |
19 |
14 |
|
JX-PG7B-SS |
2-5 |
12.5 |
12.5-12.7 |
7 |
19 |
14 |
|
|
JX-PG9A-SS |
PG9 |
4-8 |
15.2 |
15.2-15.4 |
8 |
20 |
17 |
|
JX-PG9B-SS |
2-6 |
15.2 |
15.2-15.4 |
8 |
20 |
17 |
|
|
JX-PG11A-SS |
PG11 |
5-10 |
18.6 |
18.6-18.8 |
8 |
21 |
20/21 |
|
JX-PG11B-SS |
3-7 |
18.6 |
18.6-18.8 |
8 |
21 |
20/21 |
|
|
JX-PG13.5A-SS |
PG13.5 |
6-12 |
20.4 |
20.4-20.6 |
8 |
22 |
22 |
|
JX-PG13.5B-SS |
5-9 |
20.4 |
20.4-20.6 |
8 |
22 |
22 |
|
|
JX-PG16A-SS |
PG16 |
10-14 |
22.5 |
22.5-22.7 |
9 |
23 |
24 |
|
JX-PG16B-SS |
6-12 |
22.5 |
22.5-22.7 |
9 |
23 |
24 |
|
|
JX-PG19A-SS |
PG19 |
10-14 |
25 |
25-25.2 |
9 |
25 |
24/27 |
|
JX-PG19B-SS |
8-16 |
25 |
25-25.2 |
9 |
25 |
27 |
|
|
JX-PG21A-SS |
PG21 |
13-18 |
28.3 |
28.3-28.5 |
9 |
27 |
30 |
|
JX-PG21B-SS |
9-16 |
28.3 |
28.3-28.5 |
9 |
27 |
30 |
|
|
JX-PG25A-SS |
PG25 |
15-22 |
32 |
32-32.2 |
10 |
29 |
35 |
|
JX-PG25B-SS |
16-20 |
32 |
32-32.2 |
10 |
29 |
35 |
|
|
JX-PG29A-SS |
PG29 |
18-25 |
37 |
37-37.2 |
11 |
31 |
40 |
|
JX-PG29B-SS |
13-20 |
37 |
37-37.2 |
11 |
31 |
40 |
|
|
JX-PG36A-SS |
PG36 |
25-33 |
47 |
47-47.2 |
12 |
37 |
50 |
|
JX-PG36B-SS |
20-26 |
47 |
47-47.2 |
12 |
37 |
50 |
|
|
JX-PG42A-SS |
PG42 |
32-38 |
54 |
54-54.2 |
13 |
38 |
57 |
|
JX-PG42B-SS |
25-31 |
54 |
54-54.2 |
13 |
38 |
57 |
|
|
JX-PG48A-SS |
PG48 |
37-44 |
59.3 |
59.3-59.5 |
14 |
38 |
64 |
|
JX-PG48B-SS |
29-35 |
59.3 |
59.3-59.5 |
14 |
38 |
64 |
|
|
JX-PG63-SS |
PG63 |
42-52 |
72 |
72-72.2 |
15 |
42 |
77 |

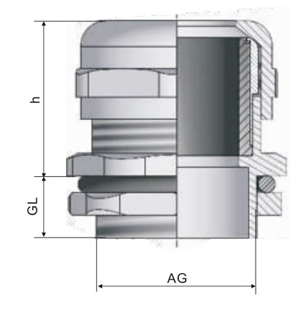

The Drawing of Stainless Steel Gland
