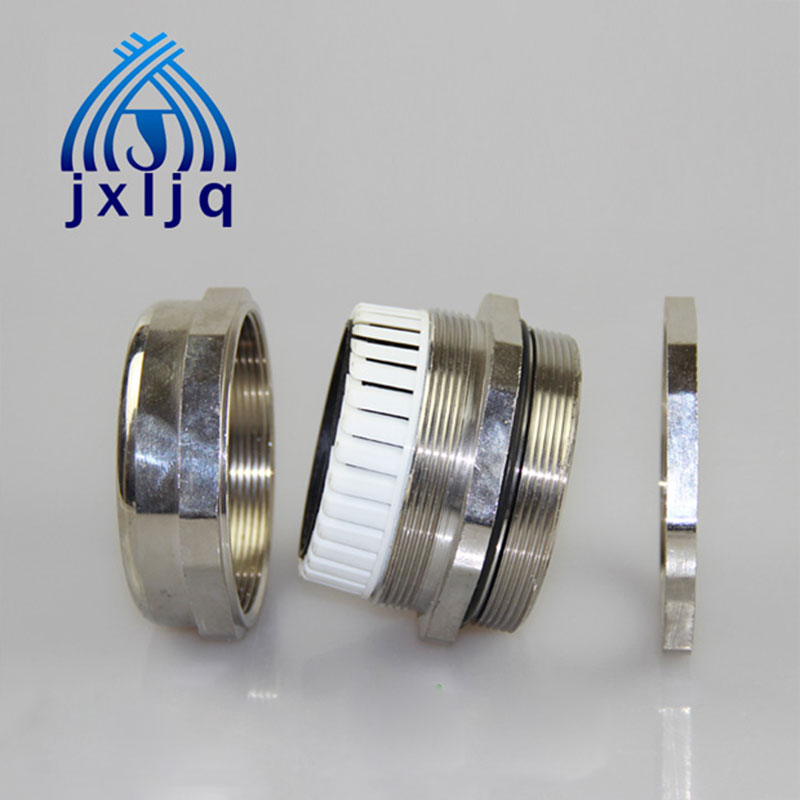

Stainless Steel Cable Gland
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
More options: Customization is acceptable.Welcome to inquire.
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D. (mm) |
Thread No. Per Inch |
Thread length GL(mm) |
Joint Length (mm) |
Spanner Size (mm) |
|
JX-G1/4-SS |
G1/4 |
3-6.5 |
13.1 |
19 |
7 |
19 |
14 |
|
JX-G3/8-SS |
G3/8 |
4-8 |
16.6 |
19 |
8 |
19 |
18 |
|
JX-G1/2-SS |
G1/2 |
6-12 |
20.9 |
14 |
8 |
22 |
22 |
|
JX-G3/4-SS |
G3/4 |
13-18 |
26.4 |
14 |
9 |
25 |
30 |
|
JX-G1-SS |
G1 |
18-25 |
33.2 |
11 |
11 |
29 |
40 |
|
JX-G11/4-SS |
G1-1/4 |
25-33 |
41.9 |
11 |
13 |
35 |
50 |
|
JX-G11/2-SS |
G1-1/2 |
32-38 |
47.8 |
11 |
14 |
37 |
57 |
|
JX-G2-SS |
G2 |
37-44 |
59.6 |
11 |
14 |
38 |
64 |
|
JX-G21/2-SS |
G2-1/2 |
42-52 |
75.1 |
11 |
15 |
38 |
77 |
|
JX-G3-SS |
G3 |
65-70 |
87.8 |
11 |
15 |
48 |
94 |
|
JX-NPT1/4-SS |
NPT1/4 |
3-6.5 |
13.6 |
18 |
7 |
19 |
14 |
|
JX-NPT3/8-SS |
NPT3/8 |
4-8 |
17 |
18 |
8 |
19 |
18 |
|
JX-NPT1/2-SS |
NPT1/2 |
6-12 |
21.2 |
14 |
8 |
22 |
22 |
|
JX-NPT3/4-SS |
NPT3/4 |
13-18 |
26.5 |
14 |
9 |
25 |
30 |
|
JX-NPT1-SS |
NPT1 |
18-25 |
33.2 |
11.5 |
11 |
29 |
40 |
|
JX-NPT11/4-SS |
NPT1-1/4 |
25-33 |
41.9 |
11.5 |
13 |
35 |
50 |
|
JX-NPT11/2-SS |
NPT1-1/2 |
32-38 |
48 |
11.5 |
14 |
37 |
57 |
|
JX-NPT2-SS |
NPT2 |
37-44 |
60 |
11.5 |
14 |
38 |
64 |
|
JX-NPT21/2-SS |
NPT2-1/2 |
42-52 |
72.6 |
8 |
15 |
38 |
77 |
|
JX-NPT3-SS |
NPT3 |
65-70 |
88.6 |
8 |
15 |
48 |
94 |

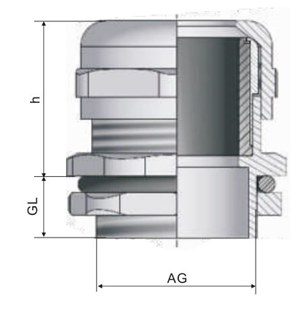

The Drawing of Stainless Steel Gland
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Stainless Steel Cable Gland PG Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Stainless Steel Cable Gland - Metric Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Customization is acceptable.Welcome to inquire.

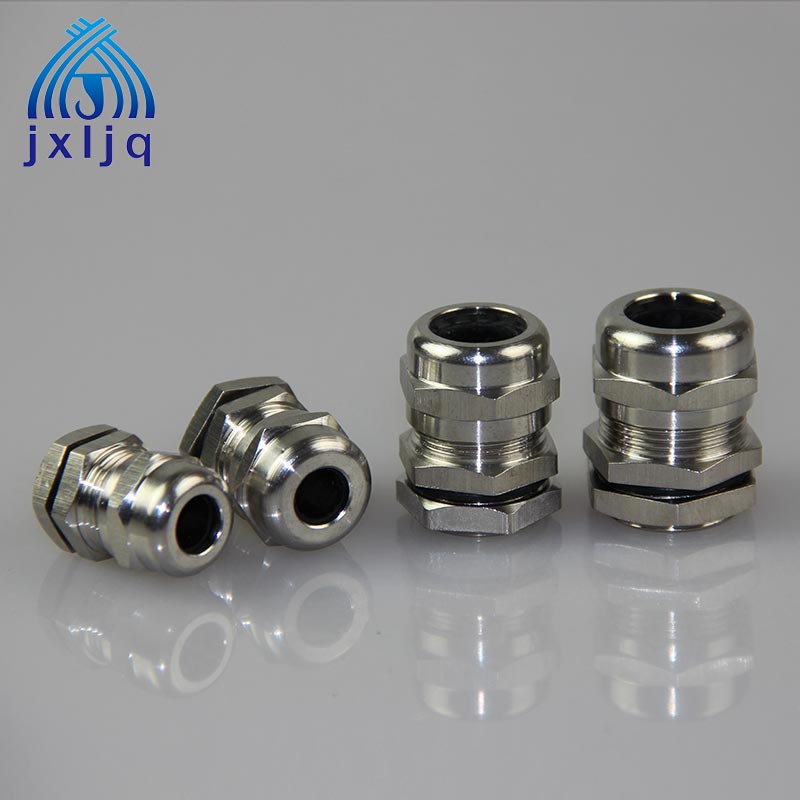

Stainless Steel Cable Gland
