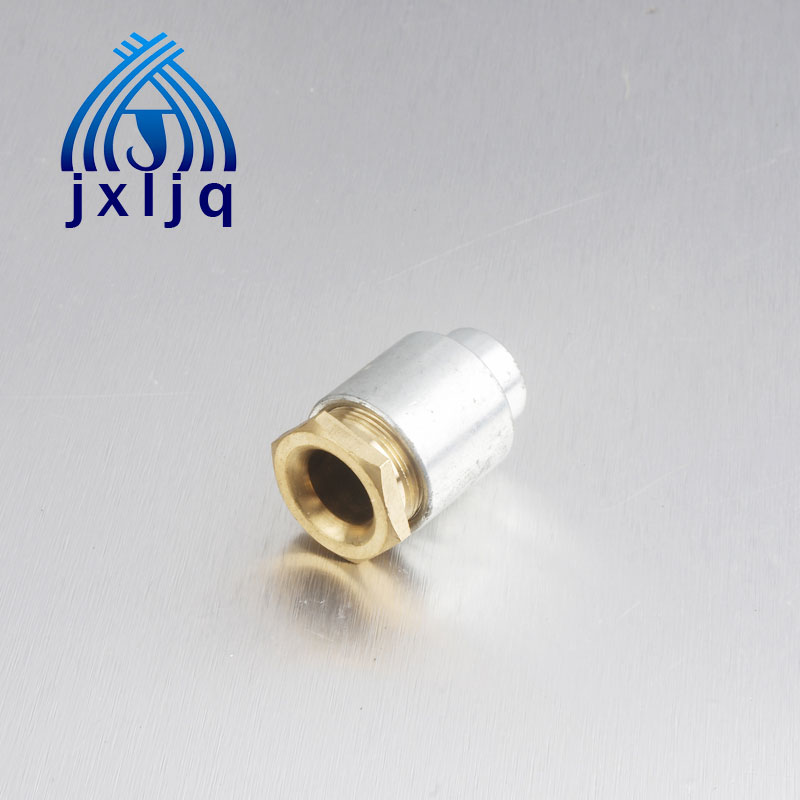

Marine Cable Gland TH Type
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Products
Thread Size: TH
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.
More options: Customization is accept.Welcome to inquire.
|
Marine Stuffing Box- TH Clamping Type |
|||||||
|
Product Code |
Cable Range (mm) |
d (mm) |
D (mm) |
d1(mm) |
D1(mm) |
J(mm) |
J1(mm) |
|
JX-TH8 |
5-7 |
8 |
M16*1 |
13 |
20 |
32 |
3 |
|
JX-TH13 |
6-12 |
13 |
M20*1 |
17 |
24 |
35 |
8 |
|
JX-TH16 |
11-15 |
16 |
M27*1.5 |
22 |
32 |
40 |
8 |
|
JX-TH19 |
14-18 |
19 |
M30*1.5 |
24 |
35 |
42 |
8 |
|
JX-TH24 |
17-23 |
24 |
M35*1.5 |
30 |
41 |
44 |
8 |
|
JX-TH28 |
22-27 |
28 |
M42*2 |
35 |
49 |
46 |
8 |
|
JX-TH34 |
26-33 |
34 |
M47*2 |
42 |
53 |
49 |
8 |
|
JX-TH42 |
32-41 |
42 |
M55*2 |
50 |
60 |
54 |
8 |
|
JX-TH50 |
40-49 |
50 |
M62*2 |
58 |
69 |
56 |
8 |
|
JX-TH58 |
48-57 |
58 |
M71*2 |
66 |
80 |
56 |
8 |
The Drawing of Marine Cable Gland:
