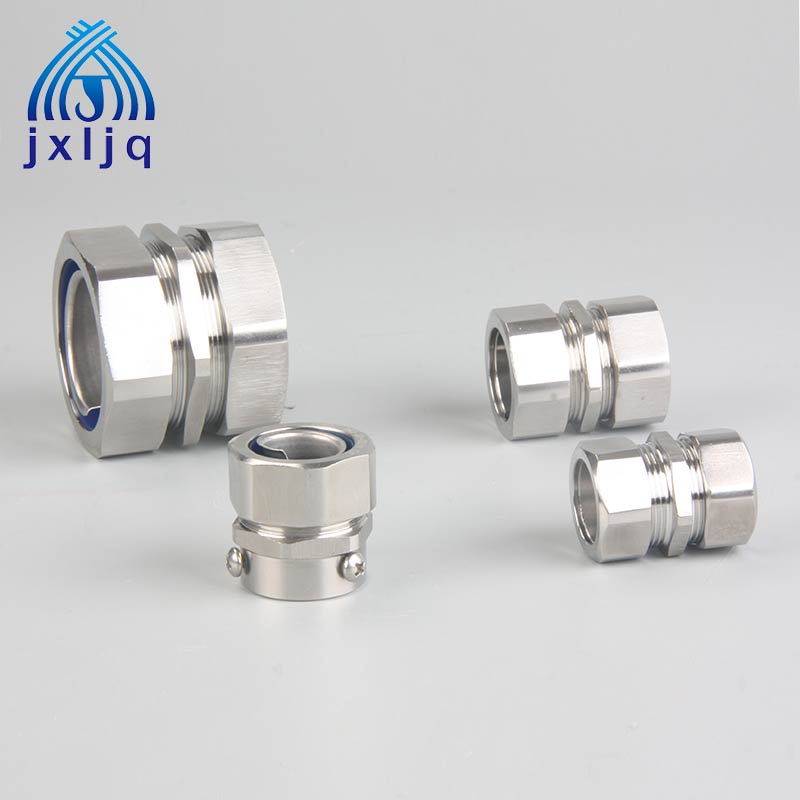

Ended Hose Connector
Material: SUS 304
Cover Lock nut: SUS 304 Zinc alloy;
Guarding: TPE;
Seal: Modified rubber
Ferrule : SUS304
Material: SUS 304
Cover Lock nut: SUS 304 Zinc alloy;
Guarding: TPE;
Seal: Modified rubber
Ferrule : SUS304
Working Temperature: Min -40 Deg to Max +105 Deg
Protection Degree: IP66
Thread Type: Metric,PG ,G
Feature: Waterproof, dust-proof , anti salt,acid and alkali, alcohol, oil, grease and general solvent.
The design of hose sheath and the hose fastening assembly phase, time saving, convenience, strong tensile.
Note: When place the order, pls inform the dimension of the conduit and thread such as JX-15-G1/2’’, one end 15 conduit and the other end G1/2’’ outer thread.
|
Code |
For conduit size (mm) |
English Thread |
GL (mm) |
Metric Thread |
GL (mm) |
PG Thread |
Spanner Size (mm) |
Std.pkg (pcs) |
|
|
Metric |
English |
||||||||
|
JX-SH-Φ6 |
Φ6 |
3/15’’ |
G1/4’’ |
7 |
M12/14 |
7 |
PG7 |
18/16 |
100 |
|
JX-SH-Φ8 |
Φ8 |
5/16’’ |
G3/8’’ |
7 |
M14/M16 |
8 |
PG9 |
24/22 |
50 |
|
JX-SH-Φ10 |
Φ10 |
1/4’’ |
G3/8’’ |
7 |
M16 |
8 |
PG9 |
24/22 |
50 |
|
JX-SH-Φ12 |
Φ12(13) |
3/8’’ |
G3/8’’ |
10 |
M18/M20 |
10 |
PG11/PG13.5 |
26 |
50 |
|
JX-SH-Φ15 |
Φ15(16) |
1/2’’ |
G1/2’’ |
12 |
M20/M22/M24 |
10 |
PG13.5/PG16 |
30 |
50 |
|
JX-SH-Φ20 |
Φ20(19) |
3/4’’ |
G3/4’’ |
12 |
M25/M27/M30 |
12 |
PG21 |
35 |
25 |
|
JX-SH-Φ25 |
Φ25 |
1’’ |
G1’’ |
14 |
M32/M33/M36 |
12 |
PG29 |
43 |
20 |
|
JX-SH-Φ32 |
Φ32 |
11/4’’ |
G11/4’’ |
14 |
M36/M40/M42/M48 |
14 |
PG29 |
52 |
10 |
|
JX-SH-Φ38 |
Φ38(40) |
11/2’’ |
G11/2’’ |
16 |
M48/M50 |
14 |
PG36/PG42 |
60 |
10 |
|
JX-SH-Φ51 |
Φ51(50) |
2’’ |
G2’’ |
16 |
M60/M63/M64/M72 |
15 |
PG48 |
75 |
5 |
|
JX-SH-Φ64 |
Φ64(70) |
21/2’’ |
G21/2’’ |
24 |
M76 |
20 |
|
89/87 |
2 |
|
JX-SH-Φ75 |
Φ75(80) |
3’’ |
G3’’ |
25 |
M88 |
22 |
|
102/97 |
2 |
|
JX-SH-Φ100 |
Φ100 |
4’’ |
G4’’ |
25 |
M114 |
28 |
|
133/128 |
2 |
|
JX-SH-Φ125 |
Φ125 |
5’’ |
G5’’ |
25 |
M140 |
29 |
|
158 |
2 |
|
JX-SH-Φ150 |
Φ150 |
6’’ |
G6’’ |
25 |
M164 |
29 |
|
183 |
2 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Ended Hose Connector
Material: SUS 304
Cover Lock nut: SUS 304 Zinc alloy;
Guarding: TPE;
Seal: Modified rubber
Ferrule : SUS304
Metal Tighten Hose Connector
Material: Brass / Brass with nickel Plated
Seal: NBR,PA6
Ferrule : Brass
Sealing Ring: Thermoplastic elastomer or PTEE
Protection Degree: IP65
Brass Hose Connector
Material: Brass / Brass with nickel Plated
Protection Degree: IP67
Thread Type: Metric,PG
