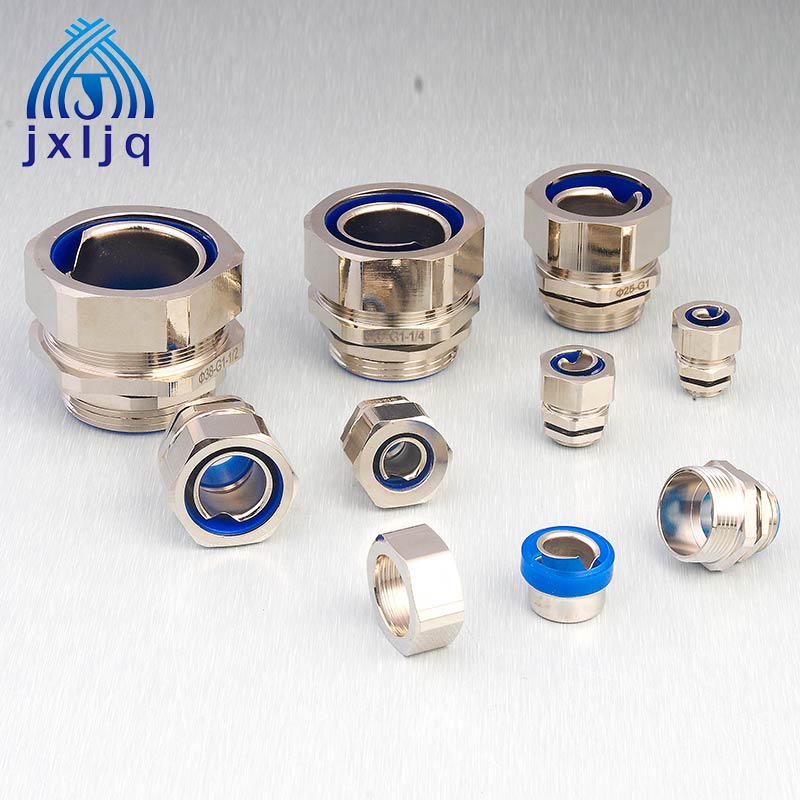

Brass Hose Connector

Brass Hose Connector – Metric, PG Thread

Product Code

Φ(mm)

Thread (mm)

Fits to Tubing size

ΦB(mm)

C (mm)

D (mm)

SW1

SW2

JX-M10-BH

6.5

M10*1.0

AD10

19

10

31

15

17

JX-M12-BH

9.0

M12*1.5

AD14

23

10

33

19

21

JX-M16-BH

12.5

M16*1.5

AD17

27

10

33

23

25

JX-M20-BH

16.0

M20*1.5

AD21

31

10

33

27

29

JX-M25-BH

21.0

M25*1.5

AD27

39

11

41

34

36

JX-M32-10-BH

27.5

M32*1.5

AD36

48

13

43

43

45

JX-M40-12-BH

35.5

M40*1.5

AD45

57

13

43

52

54

JX-M50-14-BH

45.5

M50*1.5

AD56

70

14

49

63

66

JX-M63-14-BH

49

M63*1.5

AD56

70

14

49

63

66

JX-PG7-BH

6.5

PG7

AD10

19

7

28

15

17

JX-PG9-BH

10.0

PG9

AD14

23

7

30

19

21

JX-PG11-BH

12.5

PG11

AD17

27

7

30

23

25

JX-PG13.5-BH

14.5

PG13.5

AD19

29

7

30

25

27

JX-PG16-BH

16.0

PG16

AD21

31

7

30

27

29

JX-PG21-BH

21.0

PG21

AD27

39

10

40

34

36

JX-PG29-BH

29.0

PG29

AD36

48

10

40

43

45

JX-PG36-BH

38.0

PG36

AD45

57

10

40

52

54

JX-PG48-BH

49.0

PG48

AD56

70

10

45

63

66
