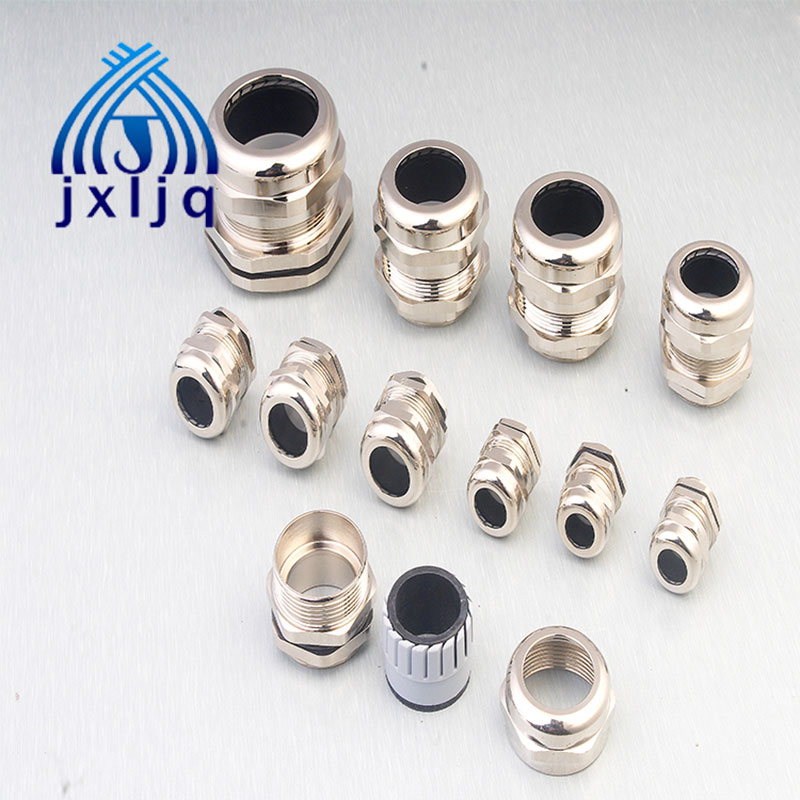

Waterproof Brass Cable Gland
Material: brass
Clamping part : plastic(PA)
Seals and O-ring: nitrile rubber (NBR).
Certificates: CE,IP68,ISO9001,TUV
Products
Thread Specification: Metric Thread
Material: The joint body parts are made of brass, the clamping part is made of plastic(PA), and the seals and O-ring are made of nitrile rubber (NBR).
Certificates: CE,IP68,ISO9001,TUV
Protection Degree: In the specific cable range, the using of O-ring helps tighten head so that to reach IP68-10 bar.
Operating temperature: Static: -40℃to 100℃, short time up to 120℃. Dynamic: -20℃to 80℃, short time up to 100℃
Thread length: The short thin thread is suitable for holes in thin board openings or devices with internal thread, while the long thread is available fro thick board. Thread extension can be customized.
Features: The cable gland is a product of large scope, strong tensile strength, waterproof, dustproof, salt, acid, alcohol, grease and common solvents resistant.
Function: Metal Cable Gland is cable supporting products, connector cable can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.
More options: Customization is acceptable. Welcome to inquire when ordering.
|

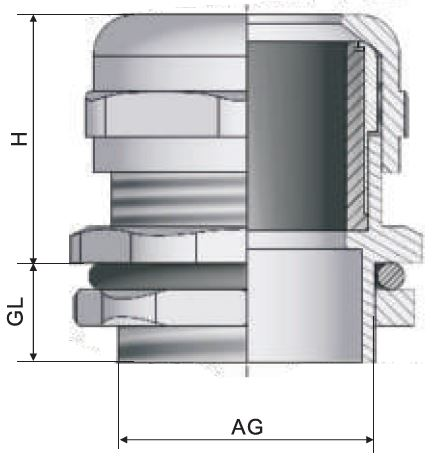

Metal Cable Gland - M Series Metric thread |
|||||||
|
Product Code |
Thread AG |
Applicable cable range(mm) |
Thread O.D.(mm) |
Mounting Hole Diameter (mm) |
Thread length GL(mm) |
Joint length H(mm) |
Spanner Size (mm) |
|
JX-M8-NP |
M8*1 |
5.5-2 |
8 |
8-8.2 |
5 |
16 |
12 |
|
JX-M10-NP |
M10*1 |
6.5-3 |
10 |
10-10.2 |
7 |
19 |
14 |
|
JX-M12-NP |
M12*1.5 |
6.5-3 |
12 |
12-12.2 |
7 |
19 |
14 |
|
JX-M14-NP |
M14*1.5 |
8-4 |
14 |
14-14.2 |
7 |
19 |
17 |
|
JX-M16-NP |
M16*1.5 |
8-4 |
16 |
16-16.2 |
8 |
20 |
18 |
|
JX-M18-NP |
M18*1.5 |
10-5 |
18 |
18-18.2 |
8 |
21 |
20 |
|
JX-M20-NP |
M20*1.5 |
12-6 |
20 |
20-20.2 |
8 |
22 |
22 |
|
JX-M22-NP |
M22*1.5 |
14-10 |
22 |
22-22.2 |
8 |
23 |
24 |
|
JX-M24-NP |
M24*1.5 |
14-10 |
24 |
24-24.2 |
9 |
25 |
24/27 |
|
JX-M25A-NP |
M25*1.5 |
14-10 |
25 |
25-25.2 |
9 |
25 |
24/27 |
|
JX-M25B-NP |
M25*1.5 |
16-8 |
25 |
25-25.2 |
9 |
27 |
27 |
|
JX-M25C-NP |
M25*1.5 |
18-13 |
25 |
25-25.2 |
9 |
27 |
30/27 |
|
JX-M27A-NP |
M27*1.5 |
18-13 |
27 |
27-27.2 |
9 |
27 |
30 |
|
JX-M27B-NP |
M27*2 |
18-13 |
27 |
27-27.2 |
9 |
27 |
30 |
|
JX-M28A-NP |
M28*1.5 |
18-13 |
28 |
28-28.2 |
9 |
27 |
30 |
|
JX-M28B-NP |
M28*2 |
18-13 |
28 |
28-28.2 |
9 |
27 |
30 |
|
JX-M30A-NP |
M30*1.5 |
18-13 |
30 |
30-30.2 |
9 |
29 |
30/32 |
|
JX-M30B-NP |
M30*2 |
18-13 |
30 |
30-30.2 |
9 |
29 |
30/32 |
|
JX-M32A-NP |
M32*1.5 |
22-15 |
32 |
32-32.2 |
10 |
29 |
35 |
|
JX-M32B-NP |
M32*1.5 |
20-16 |
32 |
32-32.2 |
10 |
29 |
35 |
|
JX-M32C-NP |
M32*2 |
22-15 |
32 |
32-32.2 |
10 |
29 |
35 |
|
JX-M33A-NP |
M33*1.5 |
22-15 |
33 |
33-33.2 |
10 |
29 |
35 |
|
JX-M33B-NP |
M33*2 |
22-15 |
33 |
33-33.2 |
10 |
29 |
35 |
|
JX-M36A-NP |
M36*1.5 |
25-18 |
36 |
36-36.2 |
10 |
31 |
40 |
|
JX-M36B-NP |
M36*2 |
25-18 |
36 |
36-36.2 |
10 |
31 |
40 |
|
JX-M37A-NP |
M37*1.5 |
25-18 |
37 |
37-37.2 |
10 |
31 |
40 |
|
JX-M37B-NP |
M37*2 |
25-18 |
37 |
37-37.2 |
10 |
31 |
40 |
|
JX-M40A-NP |
M40*1.5 |
25-18 |
40 |
40-40.2 |
11 |
31 |
40/45 |
|
JX-M40B-NP |
M40*2 |
25-18 |
40 |
40-40.2 |
11 |
31 |
40/45 |
|
JX-M40C-NP |
M40*1.5 |
30-22 |
40 |
40-40.2 |
11 |
35 |
45 |
|
JX-M40D-NP |
M40*2 |
30-22 |
40 |
40-40.2 |
11 |
35 |
45 |
|
JX-M42A-NP |
M42*1.5 |
30-22 |
42 |
42-42.2 |
11 |
35 |
45 |
|
JX-M42B-NP |
M42*2 |
30-22 |
42 |
42-42.2 |
11 |
35 |
45 |
|
JX-M47A-NP |
M47*1.5 |
33-25 |
47 |
47-47.2 |
11 |
37 |
50 |
|
JX-M47B-NP |
M47*2 |
33-25 |
47 |
47-47.2 |
11 |
37 |
50 |
|
JX-M48A-NP |
M48*1.5 |
33-25 |
48 |
48-48.2 |
11 |
37 |
50/52 |
|
JX-M48B-NP |
M48*2 |
33-25 |
48 |
48-48.2 |
11 |
37 |
50/52 |
|
JX-M50A-NP |
M50*1.5 |
38-32 |
50 |
50-50.2 |
12 |
37 |
55/57 |
|
JX-M50B-NP |
M50*2 |
38-32 |
50 |
50-50.2 |
12 |
37 |
55/57 |
|
JX-M54A-NP |
M54*1.5 |
38-32 |
54 |
54-54.2 |
12 |
38 |
57 |
|
JX-M54B-NP |
M54*2 |
38-32 |
54 |
54-54.2 |
12 |
38 |
57 |
|
JX-M56A-NP |
M56*1.5 |
38-32 |
56 |
56-56.2 |
12 |
38 |
57/59 |
|
JX-M56B-NP |
M56*2 |
38-32 |
56 |
56-56.2 |
12 |
38 |
57/59 |
|
JX-M60A-NP |
M60*1.5 |
44-37 |
60 |
60-60.2 |
13 |
38 |
64 |
|
JX-M60B-NP |
M60*2 |
44-37 |
60 |
60-60.2 |
13 |
38 |
64 |
|
JX-M63A-NP |
M63*1.5 |
44-37 |
63 |
63-63.2 |
13 |
38 |
64/68 |
|
JX-M63B-NP |
M63*2 |
44-37 |
63 |
63-63.2 |
13 |
38 |
64/68 |
|
JX-M64A-NP |
M64*1.5 |
44-37 |
64 |
64-64.2 |
13 |
38 |
64/68 |
|
JX-M64B-NP |
M64*2 |
44-37 |
64 |
64-64.2 |
13 |
38 |
64/68 |
|
JX-M72-NP |
M72*2 |
52-42 |
72 |
72-72.2 |
15 |
42 |
78 |
|
JX-M75-NP |
M75*2 |
52-42 |
75 |
75-75.2 |
15 |
42 |
78 |
|
JX-M80-NP |
M80*2 |
62-55 |
80 |
80-80.2 |
15 |
45 |
86/88 |
|
JX-M88-NP |
M88*2 |
70-60 |
88 |
88-88.2 |
15 |
45 |
98 |
|
JX-M100-NP |
M100*2 |
80-70 |
100 |
100-100.2 |
15 |
45 |
110 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
-114438--100956.jpg)
Waterproof Brass Cable Gland G ,NPT
Material: brass with nickel plated
Clamping part : nylon ( PA )
Seals and O-ring : nitride rubber ( NBR )
Certificates: CE, IP68, ISO9001, TUV.
Customization is acceptable. Welcome to inquire.

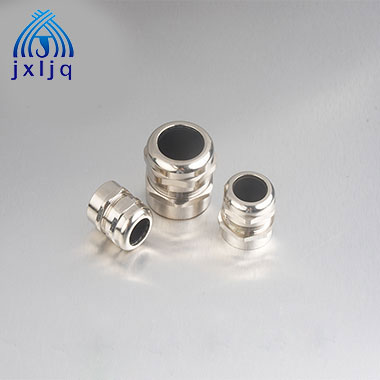

Waterproof Brass Cable Gland PG Thread
