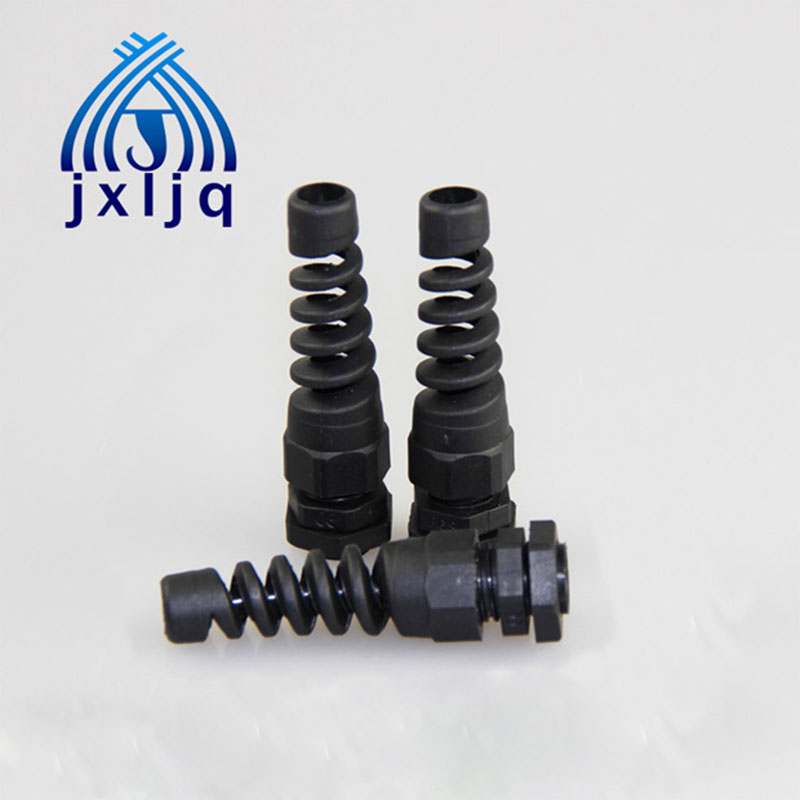

Nylon Gland with Strain Relief Metric Thread
Material: Adopting Nylon PA66 certificated by UL
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃ in static state
Material: Adopting Nylon PA66 certificated by UL
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃ in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: IP68 (Rptate the part and use O ring)
Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
Function:
1. Can be used in liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
2.Use to positively bond the conduit to a box or enclosure.
More options: Customization is acceptable. Welcome to inquire.
|
Nylon Flexible Cable Gland(With Strain Relef) -- metric thread |
|||||
|
Product Code |
Thread AG |
Cable range (mm) |
Thread O.D. AG(mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-M12A-NFL |
M12*1.5 |
3-6.5 |
12 |
8 |
16 |
|
JX-M12B-NFL |
M12*1.5 |
2-5 |
12 |
8 |
16 |
|
JX-M16A-NFL |
M16*1.5 |
4-8 |
16 |
8 |
19 |
|
JX-M16B-NFL |
M16*1.5 |
2-6 |
16 |
8 |
19 |
|
JX-M18A-NFL |
M18*1.5 |
5-10 |
18 |
8 |
22 |
|
JX-M18B-NFL |
M18*1.5 |
3-7 |
18 |
8 |
22 |
|
JX-M20A-NFL |
M20*1.5 |
6-12 |
20 |
9 |
24 |
|
JX-M20B-NFL |
M20*1.5 |
5-9 |
20 |
9 |
24 |
|
JX-M22A-NFL |
M22*1.5 |
10-14 |
22 |
10 |
27 |
|
JX-M22B-NFL |
M22*1.5 |
7-12 |
22 |
10 |
27 |
|
JX-M25A-NFL |
M25*1.5 |
13-18 |
25 |
10 |
33 |
|
JX-M25B-NFL |
M25*1.5 |
9-16 |
25 |
10 |
33 |
|
JX-M27A-NFL |
M27*1.5 |
13-18 |
27 |
10 |
33 |
|
JX-M27B-NFL |
M27*1.5 |
9-16 |
27 |
10 |
33 |

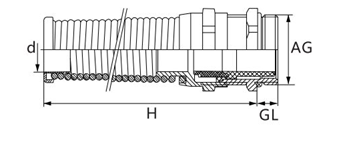

The Drawing of Flexible Cable Gland:
