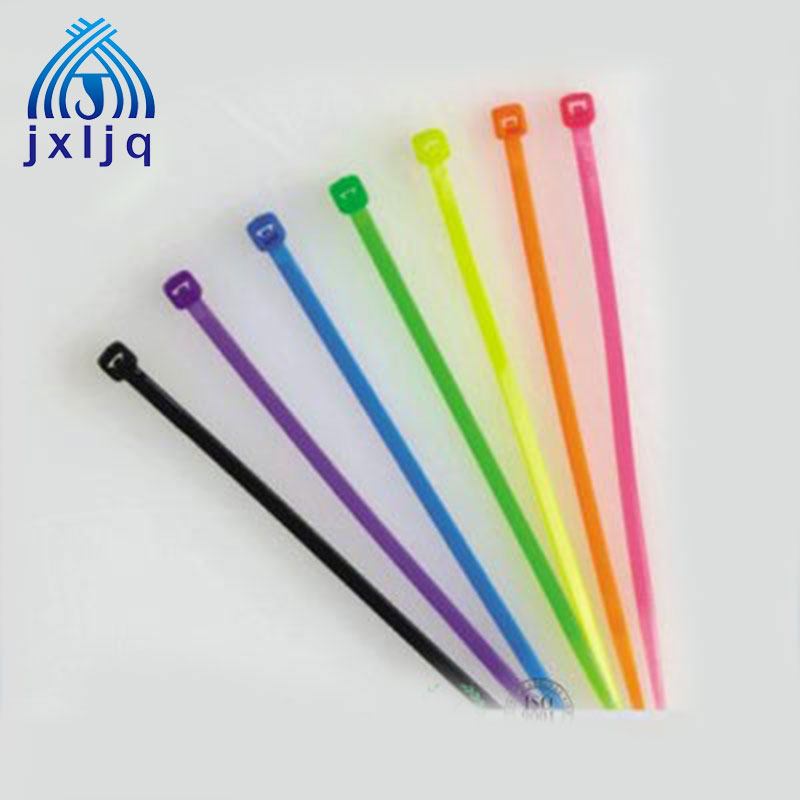

Nylon Cable Tie
Material: Nylon 66 94V-2 certificated by UL.
Heat-resisting, erosion control, insulate well and not apt to age.
Color: Natural ( or white, standard color), UV black and other colors are available as requested.
Operating temperature: -35°C to 85°C
Material: Nylon 66 94V-2 certificated by UL.
Heat-resisting, erosion control, insulate well and not apt to age.
Color: Natural ( or white, standard color), UV black and other colors are available as requested.
Operating temperature: -35°C to 85°C

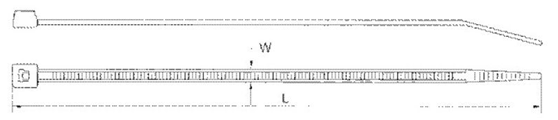

The Drawing:
|
Nylon Cable Tie |
||||||
|
Code |
Length (L) |
Width （mm） |
Bundle Diameter (mm) |
Tensile Strength |
||
|
INCH |
MM |
Lbs |
Kgs |
|||
|
JX-2.5*80 |
3.2’’ |
80 |
2.5 |
2-16 |
18 |
8 |
|
JX-2.5*100 |
4.0’’ |
100 |
2.5 |
2-22 |
18 |
8 |
|
JX-2.5*120 |
4.7’’ |
120 |
2.5 |
2-30 |
18 |
8 |
|
JX-2.5*150 |
6.0’’ |
150 |
2.5 |
2-35 |
18 |
8 |
|
JX-2.5*200 |
8.0’’ |
200 |
2.5 |
2-50 |
18 |
8 |
|
JX-3.6*150 |
6.0’’ |
150 |
3.6 |
3-35 |
40 |
18 |
|
JX-3.6*180 |
7.1’’ |
180 |
3.6 |
3-42 |
40 |
18 |
|
JX-3.6*200 |
8.0’’ |
200 |
3.6 |
3-50 |
40 |
18 |
|
JX-3.6*250 |
10’’ |
250 |
3.6 |
3-65 |
40 |
18 |
|
JX-3.6*300 |
12’’ |
300 |
3.6 |
3-80 |
40 |
18 |
|
JX-3.6*370 |
14.5’’ |
370 |
3.6 |
3-102 |
40 |
18 |
|
JX-4.8*200 |
8.0’’ |
200 |
4.8 |
3-50 |
50 |
22 |
|
JX-4.8*250 |
10’’ |
250 |
4.8 |
3-65 |
50 |
22 |
|
JX-4.8*300 |
12’’ |
300 |
4.8 |
3-80 |
50 |
22 |
|
JX-4.8*350 |
14’’ |
350 |
4.8 |
3-90 |
50 |
22 |
|
JX-4.8*370 |
14.5’’ |
370 |
4.8 |
3-102 |
50 |
22 |
|
JX-4.8*400 |
16’’ |
400 |
4.8 |
3-105 |
50 |
22 |
|
JX-4.8*450 |
18’’ |
450 |
4.8 |
3-130 |
50 |
22 |
|
JX-4.8*500 |
20’’ |
500 |
4.8 |
3-150 |
50 |
22 |
|
JX-7.6*200 |
8’’ |
200 |
7.6 |
3-50 |
120 |
55 |
|
JX-7.6*250 |
10’’ |
250 |
7.6 |
4-65 |
120 |
55 |
|
JX-7.6*300 |
12’’ |
300 |
7.6 |
4-80 |
120 |
55 |
|
JX-7.6*350 |
14’’ |
350 |
7.6 |
4-90 |
120 |
55 |
|
JX-7.6*380 |
15’’ |
380 |
7.6 |
4-100 |
120 |
55 |
|
JX-7.6*400 |
16’’ |
400 |
7.6 |
4-105 |
120 |
55 |
|
JX-7.6*450 |
18’’ |
450 |
7.6 |
4-110 |
120 |
55 |
|
JX-7.6*500 |
20’’ |
500 |
7.6 |
4-150 |
120 |
55 |
|
JX-7.6*550 |
21.6’’ |
550 |
7.6 |
4-160 |
120 |
55 |
|
JX-7.6*700 |
28’’ |
700 |
7.6 |
4-195 |
120 |
55 |
