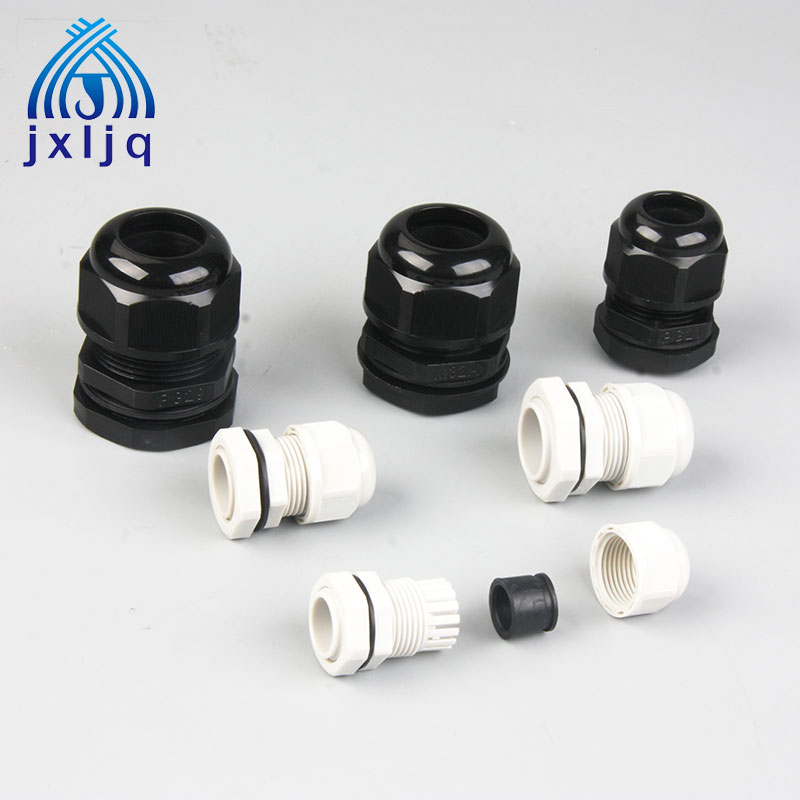

Nylon Cable Gland
Material: UL approved- Nylon PA66 for A.C.F Parts.
EPDM rubber is for B.D parts.
Product Certification: CE certification, ROHS certification and ISO9001.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
Customization is accept.Welcome to inquire.
Products
Thread Size: G.NPT Thread
Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
More options: Customization is acceptable. Welcome to inquire.
|
United Structure Nylon Cable Gland-- NPT,G thread |
|||||
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D. C1(mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-NLG1/4A-UN |
G1/4’’ |
3-5.3 |
13.157 |
8.5 |
19/19 |
|
JX-NLG1/4B-UN |
4-8 |
13.157 |
8.5 |
19/19 |
|
|
JX-NLG3/8A-UN |
G3/8’’ |
3-7 |
16.662 |
10 |
22/22 |
|
JX-NLG3/8B-UN |
5-10 |
16.662 |
10 |
22/22 |
|
|
JX-NLG1/2A-UN |
G1/2’’
|
5-9 |
20.955 |
10 |
27/24 |
|
JX-NLG1/2B-UN |
6-12.5 |
20.955 |
10 |
27/24 |
|
|
JX-NLG3/4A-UN |
G3/4’’ |
7-13 |
26.441 |
12 |
36/33 |
|
JX-NLG3/4B-UN |
12.5-18 |
26.441 |
12 |
36/33 |
|
|
JX-NLG1A-UN |
G1’’ |
15-22 |
33.249 |
15 |
46/41 |
|
JX-NLG1B-UN |
17-25 |
33.249 |
15 |
46/41 |
|
|
JX-NLG1 1/4A-UN |
G11/4’’ |
17-25.5 |
41.91 |
15 |
57/52 |
|
JX-NLG1 1/4B-UN |
30-41 |
41.91 |
15 |
57/52 |
|
|
JX-NLG1 1/2A-UN |
G11/2’’
|
25-32 |
48 |
15 |
60/62 |
|
JX-NLG1 1/2B-UN |
24-32 |
48 |
15 |
60/62 |
|
|
JX-NLG2A-UN |
G2’’ |
29-38 |
60 |
18 |
60/62 |
|
JX-NLG2B-UN |
39-45.5 |
60 |
18 |
60/62 |
|
|
JX-NLNPT1/4A-UN |
NPT1/4’’
|
3-5.3 |
13.157 |
8.5 |
19/19 |
|
JX-NLNPT1/4B-UN |
4-8 |
13.157 |
8.5 |
19/19 |
|
|
JX-NLNPT3/8A-UN |
NPT3/8’’ |
3-7 |
16.662 |
10 |
22/22 |
|
JX-NLNPT3/8B-UN |
5-10 |
16.662 |
10 |
22/22 |
|
|
JX-NLNPT1/2A-UN |
NPT1/2’’
|
5-9 |
20.955 |
10 |
24/24 |
|
JX-NLNPT1/2B-UN |
6-12.5 |
20.955 |
10 |
24/24 |
|
|
JX-NLNPT3/4A-UN |
NPT3/4’’ |
7-13 |
26.441 |
15 |
33/33 |
|
JX-NLNPT3/4B-UN |
12.5-18 |
26.441 |
15 |
33/33 |
|
|
JX-NLNPT1A-UN |
NPT1’’
|
15-22 |
33.249 |
15 |
41/41 |
|
JX-NLNPT1B-UN |
17-25 |
33.249 |
15 |
41/41 |
|
|
JX-NLNPT1 1/4A-UN |
NPT11/4’’ |
17-25.5 |
41.91 |
15 |
52/52 |
|
JX-NLNPT1 1/4B-UN |
24-32 |
41.91 |
15 |
52/52 |
|

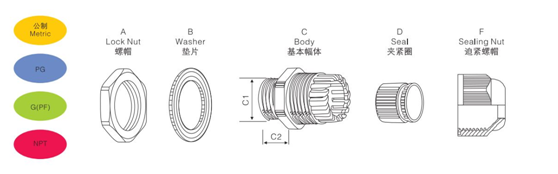

The Drawing of United Structure Nylon Cable Gland
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Nylon Cable Gland
Material: UL approved- Nylon PA66 for A.C.F Parts.
EPDM rubber is for B.D parts.
Product Certification: CE certification, ROHS certification and ISO9001.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
Customization is accept.Welcome to inquire.

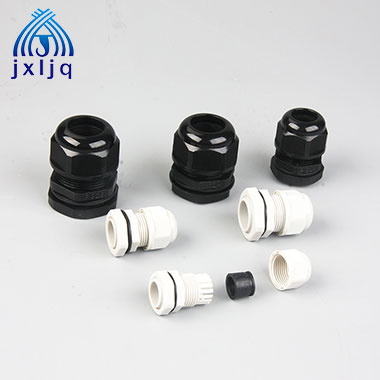

Nylon Cable Gland United Structure Metric Thread
Material: UL approved- Nylon PA66 for A.C.F Parts.
EPDM rubber is for B.D parts.
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.

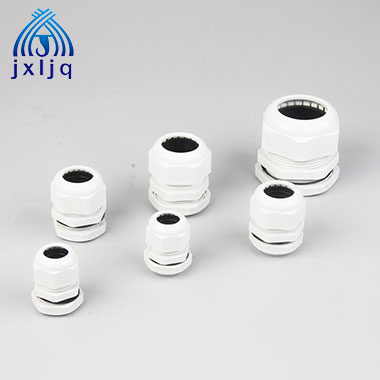

Nylon Cable Gland United Structure -PG Thread
