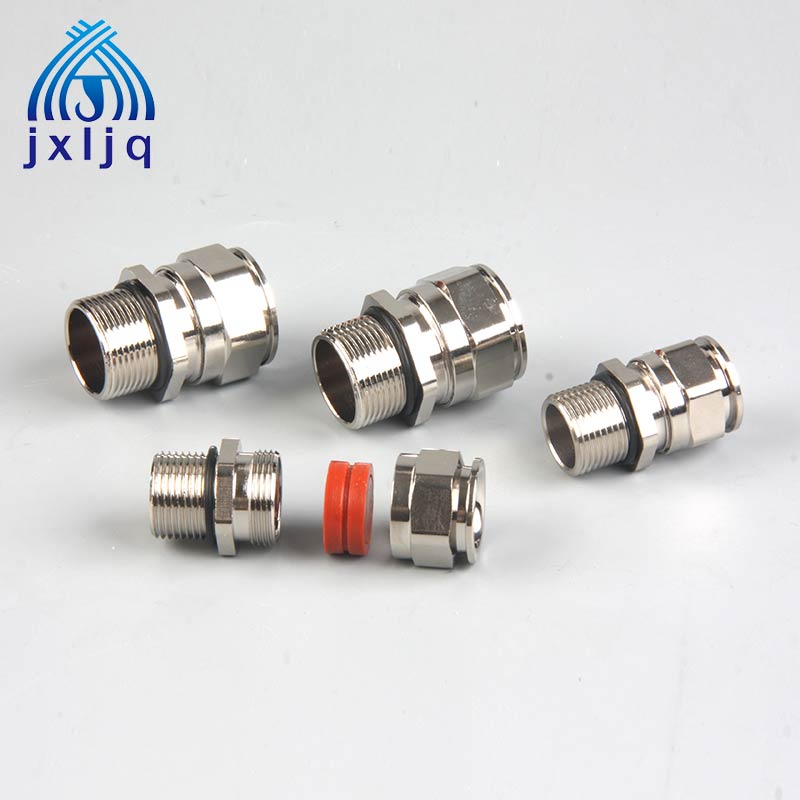

Non Armored Explosion-proof Cable Gland
Material: SU304 for Body, brass with nickel plated
Seal: High Temperature silicone
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-30 °C，Max 100 °C, short time to 120°C
Material: SU304 for Body, brass with nickel plated
Seal: High Temperature silicone
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-30 °C，Max 100 °C, short time to 120°C
Features: high-end design, practical, increase flood control external meter seal.
Ex Degree: Exd II
Thread Options: Metric, G, PG, NPT
Application: Zone 1 hazardous locations and IIA IIB IIC explosive gas atmospheres,
Explosion-proof electrical equipment connections, chemicals, petroleum, various sectors of electricity, light industry, machinery, etc, especially for automation engineering line installation.
|
Non Armored Explosion-proof Cable Gland – Metric Thread |
|||||
|
Code |
AG Thread |
Cable Range O.D.(mm) |
Thread Length GL (mm) |
Spanner Size (mm) |
|
|
Metric |
|||||
|
JX-EXN-M12 |
M12*1.5 |
4-8 |
15 |
15 |
15 |
|
JX-EXN-M16A |
M16*1.5 |
4-8.5 |
15 |
15 |
19 |
|
JX-EXN-M16B |
M16*1.5 |
6-12 |
15 |
19 |
19 |
|
JX-EXN-M20A |
M20*1.5 |
4-8.5 |
15 |
15 |
24 |
|
JX-EXN-M20B |
M20*1.5 |
6-12 |
15 |
19 |
24 |
|
JX-EXN-M20C |
M20*1.5 |
8.5-16 |
15 |
24 |
24 |
|
JX-EXN-M25A |
M25*1.5 |
6-12 |
15 |
19 |
30 |
|
JX-EXN-M25B |
M25*1.5 |
8.5-16 |
15 |
24 |
30 |
|
JX-EXN-M25C |
M25*1.5 |
12-20.5 |
15 |
30 |
30 |
|
JX-EXN-M32A |
M32*1.5 |
12-21 |
15 |
30 |
36 |
|
JX-EXN-M32B |
M32*1.5 |
16-27.5 |
15 |
41 |
41 |
|
JX-EXN-M40A |
M40*1.5 |
16-27.5 |
15 |
41 |
44 |
|
JX-EXN-M40B |
M40*1.5 |
21-34 |
15 |
48 |
48 |
|
JX-EXN-M50A |
M50*1.5 |
21-34 |
16 |
48 |
55 |
|
JX-EXN-M50B |
M50*1.5 |
27-41 |
16 |
55 |
55 |
|
JX-EXN-M60A |
M60*1.5 |
33-48 |
17 |
64 |
67 |
|
JX-EXN-M60B |
M60*1.5 |
40-56 |
17 |
72 |
72 |
|
Non Armored Explosion-proof Cable Gland -PG Thread |
|||||
|
Code |
AG Thread |
Cable Range O.D.(mm) |
Thread Length GL (mm) |
Spanner Size (mm) |
|
|
PG |
|||||
|
JX-EXN-P7 |
PG7 |
4-8.5 |
15 |
15 |
15 |
|
JX-EXN-P9A |
PG9 |
4-8.5 |
15 |
15 |
19 |
|
JX-EXN-P9B |
PG9 |
6-11 |
15 |
19 |
19 |
|
JX-EXN-P11A |
PG11 |
4-8.5 |
15 |
15 |
22 |
|
JX-EXN-P11B |
PG11 |
6-12 |
15 |
19 |
22 |
|
JX-EXN-P13.5A |
PG13.5 |
4-8.5 |
15 |
15 |
24 |
|
JX-EXN-P13.5B |
PG13.5 |
6-12 |
15 |
19 |
24 |
|
JX-EXN-P13.5C |
PG13.5 |
8.5-16 |
15 |
24 |
24 |
|
JX-EXN-P16A |
PG16 |
6-12 |
15 |
19 |
27 |
|
JX-EXN-P16B |
PG16 |
8.5-16 |
15 |
24 |
27 |
|
JX-EXN-P16C |
PG16 |
12-19 |
15 |
30 |
30 |
|
JX-EXN-P21A |
PG21 |
8.5-16 |
15 |
24 |
32 |
|
JX-EXN-P21B |
PG21 |
12-21 |
15 |
30 |
32 |
|
JX-EXN-P29A |
PG29 |
16-27.5 |
15 |
41 |
41 |
|
JX-EXN-P29B |
PG29 |
21-33 |
15 |
48 |
48 |
|
JX-EXN-P36A |
PG36 |
21-34 |
15 |
48 |
51 |
|
JX-EXN-P36B |
PG36 |
27-41 |
15 |
55 |
55 |
|
JX-EXN-P42A |
PG42 |
27-41 |
16 |
55 |
60 |
|
JX-EXN-P42B |
PG42 |
33-48 |
16 |
60 |
64 |
|
Non Armored Explosion-proof Cable Gland- NPT Thread |
|||||
|
Code |
AG Thread |
Cable Range O.D.(mm) |
Thread Length GL (mm) |
Spanner Size (mm) |
|
|
NPT |
|||||
|
JX-EXN-N1/4 |
NPT1/4’ |
4-8 |
12 |
15 |
15 |
|
JX-EXN-N3/8A |
NPT3/8’ |
4-8.5 |
12 |
15 |
19 |
|
JX-EXN-N3/8B |
NPT3/8’ |
6-12 |
12 |
19 |
19 |
|
JX-EXN-N1/2A |
NPT1/2’ |
4-8.5 |
16 |
15 |
24 |
|
JX-EXN-1/2B |
NPT1/2’ |
6-12 |
16 |
19 |
24 |
|
JX-EXN-N1/2C |
NPT1/2’ |
8.5-15.5 |
16 |
24 |
24 |
|
JX-EXN-N3/4A |
NPT3/4’ |
6-12 |
16 |
19 |
30 |
|
JX-EXN-N3/4B |
NPT3/4’ |
8.5-16 |
16 |
24 |
30 |
|
JX-EXN-N3/4C |
NPT3/4’ |
12-20.5 |
16 |
30 |
30 |
|
JX-EXN-N1A |
NPT1’’ |
12-21 |
20 |
30 |
36 |
|
JX-EXN-N1B |
NPT1’’ |
16-26 |
20 |
41 |
41 |
|
JX-EXN-N11/4A |
NPT1-1/4’ |
16-27.5 |
20 |
41 |
44 |
|
JX-EXN-N11/4B |
NPT1-1/4’ |
21-34 |
20 |
48 |
48 |
|
JX-EXN-N11/2C |
NPT1-1/2’ |
21-34 |
20 |
48 |
51 |
|
JX-EXN-N11/2 |
NPT1-1/2’ |
27-41 |
20 |
55 |
55 |
|
JX-EXN-N2A |
NPT2’’ |
33-48 |
20 |
64 |
64 |
|
JX-EXN-N2B |
NPT2’’ |
40-53 |
20 |
72 |
72 |
|
Non Armored Explosion-proof Cable Gland -G Thread |
|||||
|
Code |
AG Thread |
Cable Range O.D.(mm) |
Thread Length GL (mm) |
Spanner Size (mm) |
|
|
G |
|||||
|
JX-EXN-G1/4 |
G1/4’ |
4-8 |
12 |
15 |
15 |
|
JX-EXN-G3/8A |
G3/8’ |
4-8.5 |
12 |
15 |
19 |
|
JX-EXN-G3/8B |
G3/8’ |
6-12 |
12 |
19 |
19 |
|
JX-EXN-G1/2A |
G1/2’ |
4-8.5 |
16 |
15 |
24 |
|
JX-EXN-G1/2B |
G1/2’ |
6-12 |
16 |
19 |
24 |
|
JX-EXN-G1/2C |
G1/2’ |
8.5-15.5 |
16 |
24 |
24 |
|
JX-EXN-G3/4A |
G3/4’ |
6-12 |
16 |
19 |
30 |
|
JX-EXN-G3/4B |
G3/4’ |
8.5-16 |
16 |
24 |
30 |
|
JX-EXN-G3/4C |
G3/4’ |
12-20.5 |
16 |
30 |
30 |
|
JX-EXN-G1A |
G1’’ |
12-21 |
20 |
30 |
36 |
|
JX-EXN-G1B |
G1’’ |
16-26 |
20 |
41 |
41 |
|
JX-EXN-G11/4A |
G1-1/4’ |
16-27.5 |
20 |
41 |
44 |
|
JX-EXN-G11/4B |
G1-1/4’ |
21-34 |
20 |
48 |
48 |
|
JX-EXN-G11/2A |
G1-1/2’ |
21-34 |
20 |
48 |
51 |
|
JX-EXN-G11/2B |
G1-1/2’ |
27-41 |
20 |
55 |
55 |
|
JX-EXN-G2A |
G2’’ |
33-48 |
20 |
64 |
64 |
|
JX-EXN-G2B |
G2’’ |
40-53 |
20 |
72 |
72 |
