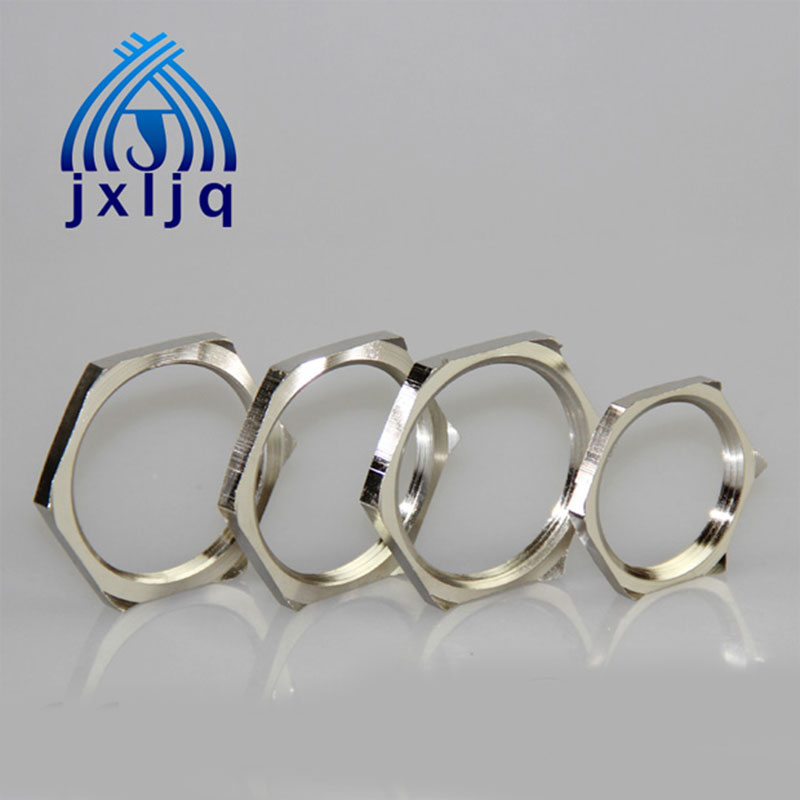

EMC Locknut
Material: Brass,nickel plated
Thread: Metric, PG, G, NPT
Certificate: CE, IP68, ISO90001
Feature: Usually matched with EMC Cable Glands ( A series to F series)
Function: For use with most electrical fittings.
Material: Brass,nickel plated
Thread: Metric, PG, G, NPT
Certificate: CE, IP68, ISO90001
Feature: Usually matched with EMC Cable Glands ( A series to F series)
Function: For use with most electrical fittings.
|
CODE |
Thread |
Thickness (mm) |
Spanner size (mm) |
CODE |
Thread |
Thickness (mm) |
Spanner size (mm) |
|
JX-M12-MLE |
M12 |
3 |
14 |
JX-PG7-MLE |
PG7 |
3 |
14 |
|
JX-M14-MLE |
M14 |
3 |
17 |
JX-PG9-MLE |
PG9 |
3 |
17 |
|
JX-M16-MLE |
M16 |
3 |
18 |
JX-PG11-MLE |
PG11 |
3 |
20 |
|
JX-M18-MLE |
M18 |
3 |
20 |
JX-PG13.5-MLE |
PG13.5 |
3 |
22 |
|
JX-M20-MLE |
M20 |
3 |
22 |
JX-PG16-MLE |
PG16 |
3.2 |
24 |
|
JX-M22-MLE |
M22 |
3.2 |
24 |
JX-PG19-MLE |
PG19 |
3.5 |
27 |
|
JX-M24-MLE |
M24 |
3.5 |
27 |
JX-PG21-MLE |
PG21 |
4 |
30 |
|
JX-M25-MLE |
M25 |
3.5 |
27 |
JX-PG25-MLE |
PG25 |
4 |
35 |
|
JX-M27-MLE |
M27 |
4 |
30 |
JX-PG29-MLE |
PG29 |
4 |
40 |
|
JX-M28-MLE |
M28 |
4 |
30 |
JX-PG36-MLE |
PG36 |
5.5 |
50 |
|
JX-M30-MLE |
M30 |
4 |
32 |
JX-PG42-MLE |
PG42 |
6 |
57 |
|
JX-M32-MLE |
M32 |
4 |
35 |
JX-PG48-MLE |
PG48 |
6.5 |
64 |
|
JX-M33-MLE |
M33 |
4 |
35 |
JX-PG63-MLE |
PG63 |
8.5 |
77 |
|
JX-M36-MLE |
M36 |
4 |
40 |
JX-G1/4-MLE |
G1/4 |
3 |
14 |
|
JX-M37-MLE |
M37 |
4 |
40 |
JX-G3/8-MLE |
G3/8 |
3 |
18 |
|
JX-M40-MLE |
M40 |
4.5 |
45 |
JX-G1/2-MLE |
G1/2 |
3 |
22 |
|
JX-M42-MLE |
M42 |
5 |
45 |
JX-G3/4-MLE |
G3/4 |
4 |
30 |
|
JX-M47-MLE |
M47 |
5.5 |
50 |
JX-G1-MLE |
G1 |
4 |
40 |
|
JX-M48-MLE |
M48 |
5.5 |
52 |
JX-G1-1/4-MLE |
G1-1/4 |
5.5 |
50 |
|
JX-M50-MLE |
M50 |
5.5 |
55 |
JX-G1-1/2-MLE |
G1-1/2 |
5.5 |
57 |
|
JX-M54-MLE |
M54 |
5.5 |
57 |
JX-G2-MLE |
G2 |
6 |
64 |
|
JX-M56-MLE |
M56 |
5.5 |
59 |
JX-G2-1/2-MLE |
G2-1/2 |
8.5 |
77 |
|
JX-M60-MLE |
M60 |
6 |
64 |
JX-G3-MLE |
G3 |
9 |
94 |
|
JX-M63-MLE |
M63 |
6 |
68 |
JX-NPT1/4-MLE |
NPT1/4 |
3 |
14 |
|
JX-M64-MLE |
M64 |
6 |
68 |
JX-NPT3/8-MLE |
NPT3/8 |
3 |
18 |
|
JX-M72-MLE |
M72 |
8.5 |
77 |
JX-NPT1/2-MLE |
NPT1/2 |
3 |
22 |
|
JX-M75-MLE |
M75 |
8.5 |
77 |
JX-NPT3/4-MLE |
NPT3/4 |
4 |
30 |
|
JX-M80-MLE |
M80 |
9 |
88 |
JX-NPT1-MLE |
NPT1 |
4 |
40 |
|
JX-M88-MLE |
M88 |
9 |
94 |
JX-NPT1-1/4-MLE |
NPT1-1/4 |
5.5 |
50 |
|
JX-M100-MLE |
M100 |
9 |
110 |
JX-NPT1-1/2-MLE |
NPT1-1/2 |
5.5 |
57 |
|
|
|
|
|
JX-NPT2-MLE |
NPT2 |
6 |
64 |
|
|
|
|
|
JX-NPT2-1/2-MLE |
NPT2-1/2 |
8.5 |
77 |
|
|
|
|
|
JX-NPT3-MLE |
NPT3 |
9 |
94 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Brass Locknut
Material: Brass,nickel plated
Thread: Metric, PG, G, NPT
Certificate: CE, IP68, ISO90001
Function: For use with most electrical fittings.
Note: Customization is available. Welcome to inquire.
EMC Locknut
Material: Brass,nickel plated
Thread: Metric, PG, G, NPT
Certificate: CE, IP68, ISO90001
Feature: Usually matched with EMC Cable Glands ( A series to F series)
Function: For use with most electrical fittings.
