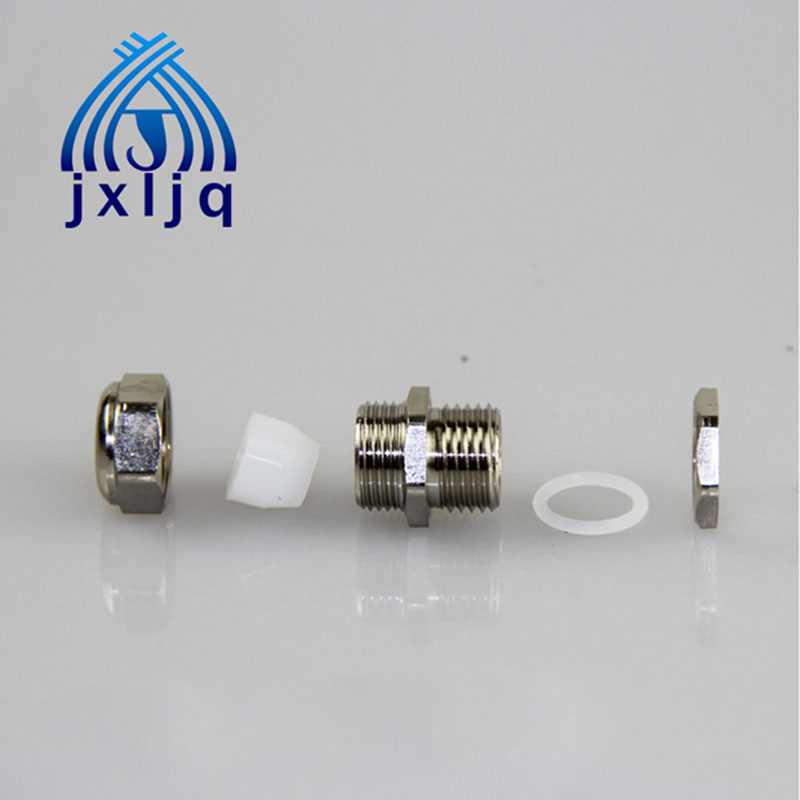

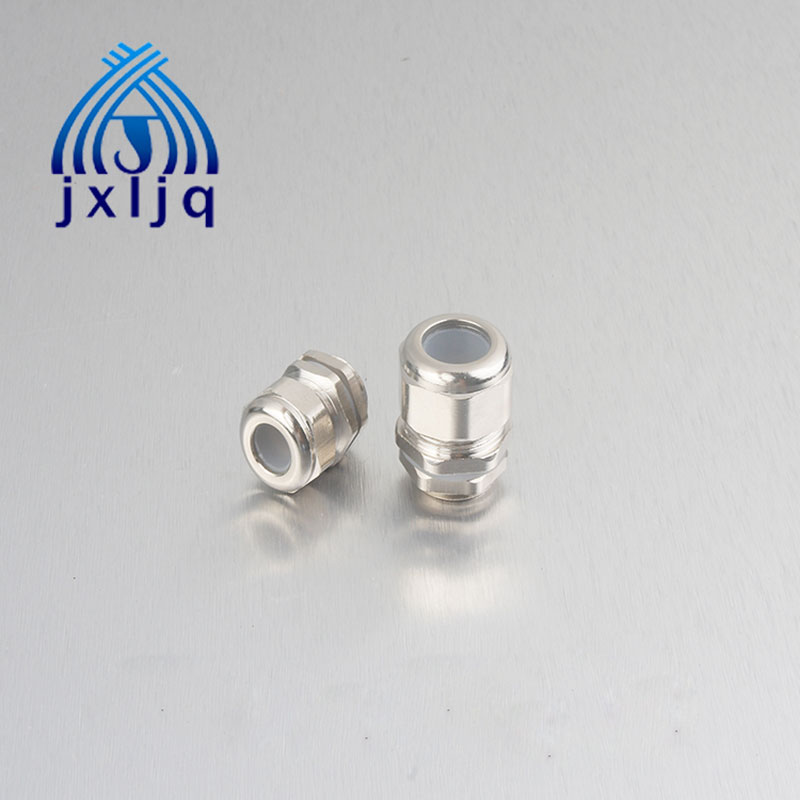

Brass Cable Gland Silicon Rubber Insert Type

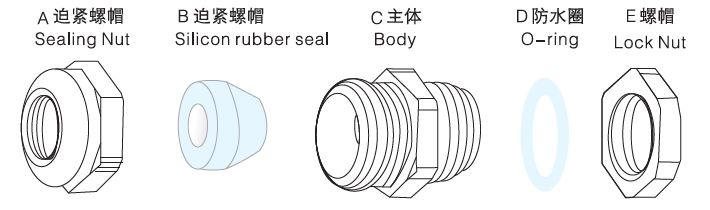

Material: Nickel-plated brass
Clamping ring: Silicon Rubber
Seal ring: Silicon Rubber
Certificate: CE,ISO9001,IP68,TUV
Customization is available.
Products
Material: Nickel-plated brass
Clamping ring: Silicon Rubber
Seal ring: Silicon Rubber
Certificate: CE,ISO9001,IP68,TUV
Operating temperature: - 60 °C to +250 °C
Applications: Applicable for control motor, launch motors, lighting equipment, refrigeration and air conditioning, household appliances, measuring machinery and equipment, automotive / marine equipment with access, communication equipment, and outdoor projects connected with the wire or cable and other harsh environments.
|
Metal Cable Gland - Silicone Series |
|||||||
|
Product Code |
Thread AG |
Applicable cable range(mm) |
Thread O.D.(mm) |
Mounting Hole Diameter(mm) |
Thread length GL(mm) |
Joint length H(mm) |
Spanner Size (mm) |
|
JX-M8-Sl |
M8*1 |
5.5-2 |
8 |
8-8.2 |
5 |
16 |
12 |
|
JX-M12A-Sl |
M12*1 |
6.5-3 |
12 |
12-12.2 |
7 |
19 |
14 |
|
JX-M12B-Sl |
M12*1.25 |
8-3 |
12 |
12-12.2 |
7 |
16 |
16 |
|
JX-M12C-Sl |
M12*1.5 |
8-3 |
12 |
12-12.2 |
7 |
16 |
16 |
|
JX-M14-Sl |
M14*1.5 |
8-3 |
14 |
14-14.2 |
7 |
16 |
16 |
|
JX-M16-Sl |
M16*1.5 |
9-4 |
16 |
16-16.2 |
8 |
20 |
20/18 |
|
JX-M18-Sl |
M18*1.5 |
9-4 |
18 |
18-18.2 |
8 |
20 |
20 |
