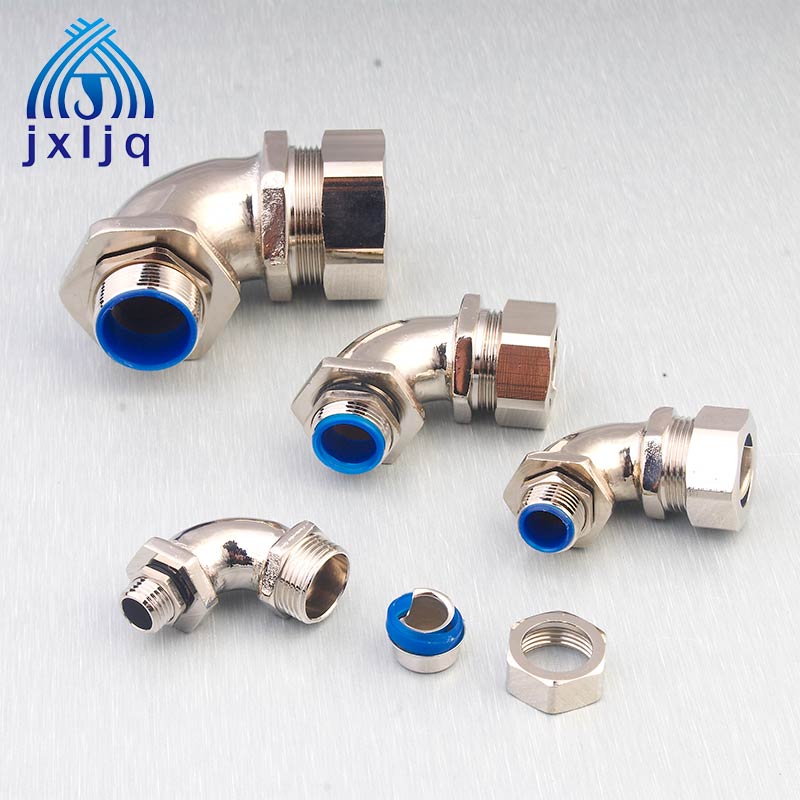

90 Degree Elbow Conduit Fittings
Material: Brass / Brass with nickel Plated ( Furnished with insulating Liner)
Protection Degree: IP67
Thread Type: Metric, but PG & G Thread can also be produced
Product
Material: Brass / Brass with nickel Plated ( Furnished with insulating Liner)
Protection Degree: IP67
Thread Type: Metric, but PG & G Thread can also be produced
Function:
1. Can be used in flexible metallic conduit or liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And it protects the electrical wire or cable outside the construction and plant.
2. Use to positively bond the conduit to a box or enclosure.
|
90 Degree Elbow Metal Conduit Fittings – Metric Thread |
|||||
|
Product Code |
Thread O.D |
Cable range (mm) |
Length (mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-M12-9D |
12 |
3-6.5 |
45 |
9 |
20/21 |
|
JX-M16-6.5-9D |
16 |
3-6.5 |
45 |
9 |
20/21 |
|
JX-M16-8-9D |
16 |
4-8 |
45 |
9 |
20/21 |
|
JX-M16-10-9D |
16 |
5-10 |
57 |
10 |
20/25 |
|
JX-M18-9D |
18 |
5-10 |
57 |
10 |
20/25 |
|
JX-M20-10-9D |
20 |
5-10 |
57 |
10 |
24/25 |
|
JX-M20-12-9D |
20 |
6-12 |
57 |
10 |
24/30 |
|
JX-M20-14-9D |
20 |
8-14 |
58 |
15 |
24/30 |
|
JX-M22-9D |
22 |
8-14 |
58 |
15 |
24/30 |
|
JX-M24-12-9D |
24 |
6-12 |
58 |
15 |
24/30 |
|
JX-M24-14-9D |
24 |
8-14 |
58 |
15 |
24/30 |
|
JX-M25-14-9D |
25 |
8-14 |
58 |
15 |
28/34 |
|
JX-M25-16-9D |
25 |
10-16 |
75 |
15 |
30/34 |
|
JX-M25-18-9D |
25 |
13-18 |
75 |
15 |
28/34 |
|
JX-M27-16-9D |
27 |
10-16 |
75 |
15 |
30/34 |
|
JX-M27-18-9D |
27 |
13-18 |
75 |
15 |
28/34 |
|
JX-M30-16-9D |
30 |
10-16 |
75 |
15 |
30/34 |
|
JX-M30-18-9D |
30 |
13-18 |
75 |
15 |
30/34 |
|
JX-M32-18-9D |
32 |
13-18 |
75 |
15 |
30/34 |
|
JX-M32-22-9D |
32 |
15-22 |
75 |
15 |
30/43 |
|
JX-M32-25-9D |
32 |
18-25 |
90 |
15 |
40/43 |
|
JX-M33-9D |
33 |
18-25 |
90 |
15 |
40/43 |
|
JX-M36-22-9D |
36 |
15-22 |
90 |
15 |
36/43 |
|
JX-M36-25-9D |
36 |
18-25 |
90 |
15 |
40/43 |
|
JX-M40-25-9D |
40 |
18-25 |
90 |
15 |
40/43 |
|
JX-M40-30-9D |
40 |
22-30 |
105 |
15 |
50/55 |
|
JX-M40-32-9D |
40 |
22-32 |
115 |
15 |
50/55 |
|
JX-M42-9D |
42 |
22-32 |
115 |
15 |
50/55 |
|
JX-M48-9D |
48 |
22-32 |
115 |
15 |
50/55 |
|
JX-M50-9D |
50 |
30-38 |
115 |
15 |
55/60 |
|
JX-M56-9D |
56 |
30-38 |
115 |
15 |
55/60 |
|
JX-M60-9D |
60 |
37-44 |
125 |
18 |
65/70 |
|
JX-M63-9D |
63 |
37-44 |
125 |
18 |
75/75 |
|
JX-M64-9D |
64 |
37-44 |
125 |
18 |
65/70 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
90,45 Degree Curved Connector
Material: Brass / Brass with nickel Plated ( Furnished with insulating Liner)
Protection Degree: IP67
When place the order, please inform the dimension of the conduit and the connected thread, such as JX15-G1/2’’.
90 Degree Elbow Conduit Fittings
Material: Brass / Brass with nickel Plated ( Furnished with insulating Liner)
Protection Degree: IP67
Thread Type: Metric, but PG & G Thread can also be produced
