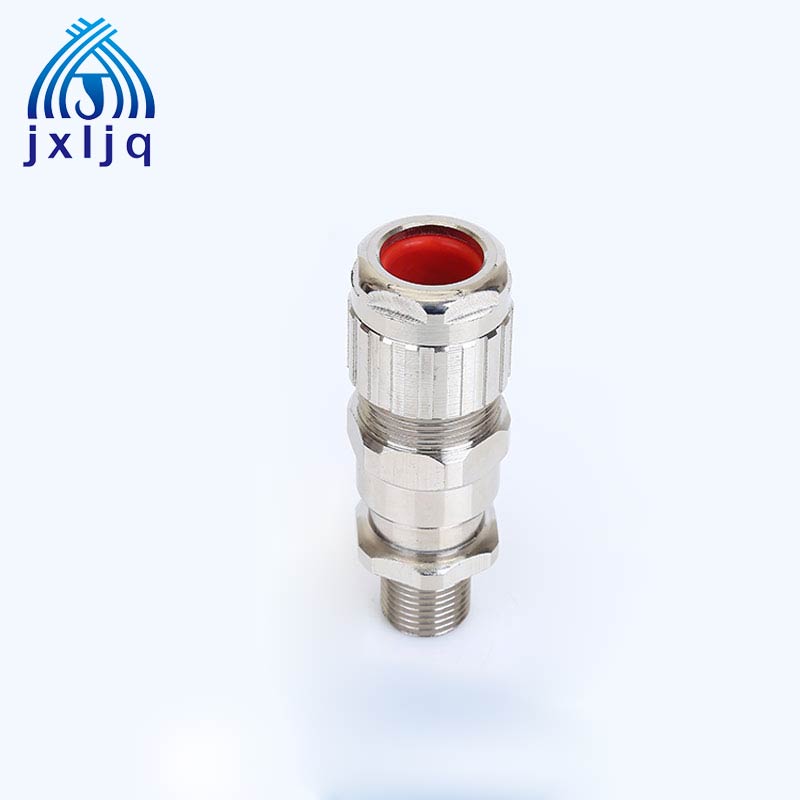

EX Clamp Sealing Joint JX5
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Products
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Features:
With quick installation, safety, reliability and other characteristics of good protection.
1. It is Made of copper or stainless steel material;
2. Cable is sealed with gasketing;
3. With reliable installation, good protection and explosion-proof function;
4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66
Function: Suitable for clamping and fixing various types of armored cable.
1. Can be used in Hazardous division 1&2;
2. Can be used in Explosive gas atmosphere;

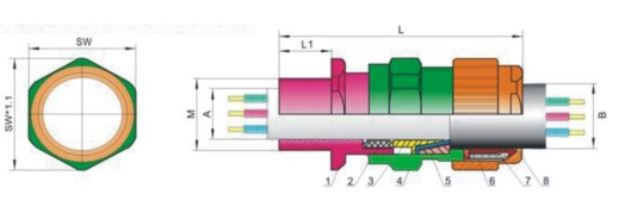

The Drawing:
1. Inlet
2. Sealing ring
3. Taper sleeve
4. middle connecting body
5. Covering ring
6. Lock Jaw
7. Sealing ring
8. Compression nut
|
Metric thread(M) |
Outer diameter of cable(mm) |
SW (mm) |
L (mm) |
L1 (mm) |
|
|
A |
B |
||||
|
JX-5-EX-M16 |
4-8 |
5.5-12 |
24 |
80 |
15 |
|
JX-5-EX-M20A |
6.5-10.5 |
9.5-16 |
27 |
80 |
15 |
|
JX-5-EX-M20B |
10-14.5 |
12.5-20 |
30 |
80 |
15 |
|
JX-5-EX-M25 |
12.5-19.5 |
16.9-26 |
36 |
88 |
15 |
|
JX-5-EX-M32 |
19-25.5 |
22-33 |
45 |
92 |
15 |
|
JX-5-EX-M40 |
25-31 |
28-41 |
57 |
98 |
15 |
|
JX-5-EX-M50 |
31.5-37 |
36-52.6 |
65 |
122 |
15 |
|
JX-5-EX-M63 |
42.5-55 |
46-65.3 |
81 |
122 |
15 |
|
JX-5-EX-M75 |
54.5-64 |
58-78 |
100 |
122 |
18 |
|
JX-5-EX-G1/2A |
4-8 |
5.5-12 |
24 |
80 |
15 |
|
JX-5-EX-G1/2B |
6.5-10.5 |
9.5-16 |
27 |
80 |
15 |
|
JX-5-EX-G3/4 |
10-14.5 |
12.5-20 |
30 |
80 |
15 |
|
JX-5-EX-G1 |
12.5-19.5 |
16.9-26 |
36 |
88 |
15 |
|
JX-5-EX-G11/4 |
19-25.5 |
22-33 |
45 |
92 |
15 |
|
JX-5-EX-G11/2 |
25-31 |
28-41 |
57 |
98 |
15 |
|
JX-5-EX-G2 |
31.5-37 |
36-52.6 |
65 |
122 |
15 |
|
JX-5-EX-G2 1/2 |
42.5-55 |
46-65.3 |
81 |
122 |
15 |
|
JX-5-EX-G3 |
54.5-64 |
58-78 |
100 |
122 |
18 |
|
JX-5-EX-NPT1/2A |
4-8 |
5.5-12 |
24 |
80 |
15 |
|
JX-5-EX-NPT1/2B |
6.5-10.5 |
9.5-16 |
27 |
80 |
15 |
|
JX-5-EX-NPT3/4 |
10-14.5 |
12.5-20 |
30 |
80 |
15 |
|
JX-5-EX-NPT1 |
12.5-19.5 |
16.9-26 |
36 |
88 |
15 |
|
JX-5-EX-NPT1 1/4 |
19-25.5 |
22-33 |
45 |
92 |
15 |
|
JX-5-EX-NPT1 1/2 |
25-31 |
28-41 |
57 |
98 |
15 |
|
JX-5-EX-NPT2 |
31.5-37 |
36-52.6 |
65 |
122 |
15 |
|
JX-5-EX-NPT2 1/2 |
42.5-55 |
46-65.3 |
81 |
122 |
15 |
|
JX-5-EX-NPT3 |
54.5-64 |
58-78 |
100 |
122 |
18 |
